TP-LINK Wireless Access Point Dual Band AX1800 Falra rögzíthető GPON, EAP625GP-Wall

• Részletek
• Adatok

Részletek

HARDWARE FEATURES

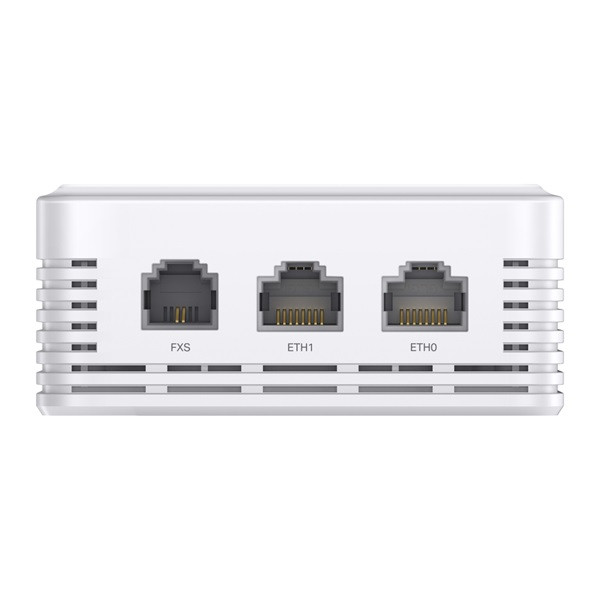

Interface	• 1x GPON Port • 1x FXS Port • 2x Gigabit RJ45 Ports (One supporting 802.3af PoE Out)
GPON Interface	• Port Type: SC-APC • Standards and Protocols: ITU-984.x, G.988, Class B+ • Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream) • Fiber Type: 9/125 um Single mode • Max. Cable Length: 20 km
Button	• Reset • LED
Power Supply	100–240V~ 50/60Hz, 0.5A
Power Consumption	30.5W (PoE out full load 15W)
Weight	350g
Dimensions ( W x D x H )	5.6 × 3.4 × 1.8 in (143 × 86 × 44.6 mm)
Antenna Type	Internal Omni • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 6.5 dBi

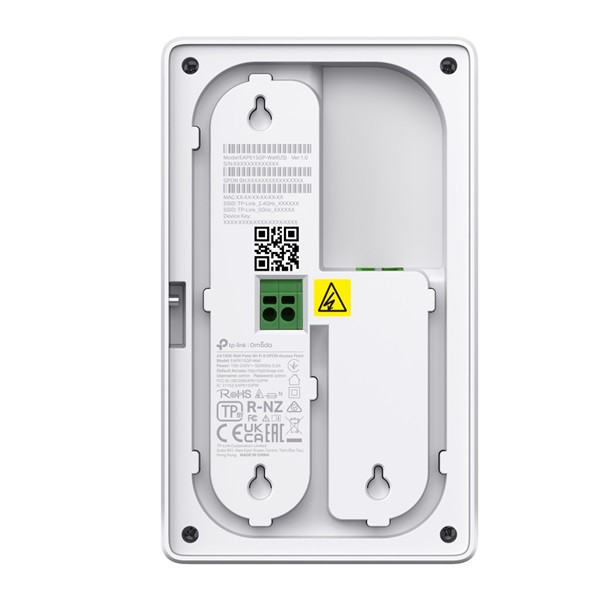

Mounting	Wall Mounting (Kits included)

WIRELESS FEATURES
Coverage	50?(600ft2)**
Concurrent Clients	120+*
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz: 1201 Mbps† • 2.4 GHz: 574 Mbps
Wireless Functions	• 2×2 (2.4G & 5G) MU-MIMO‡ • HE80 (80 MHz Bandwidth)‡ • OFDMA‡ • Mesh§ • Seamless Roaming § • Multiple SSIDs (16 SSIDs, 8 on each band) • Enable/Disable SSID Broadcast • Enable/Disable Wireless Radio • Guest Network • Automatic Channel Assignment • Beamforming • Rate Limit • Band Steering • Load Balance • Airtime Fairness • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule and Statistics • Static IP/Dynamic IP
Wireless Security	• Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 & band2, EIRP) <24 dBm(5 GHz, band3, EIRP) • FCC: <21 dBm (2.4 GHz) <21 dBm (5 GHz)

MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Hardware Controller • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	System Log
SSH	Yes
Web-based Management	Yes
Zero-Touch Provisioning	Yes. Require the use of Omada Cloud-Based Controller.

OTHERS
Certification	CE, FCC, RoHS, IC
Package Contents	• EAP625GP-Wall • Wall Mounting Kit • Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment	• Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

Adatok

Gyártó:

TP-LINK

Gyártói cikkszám:

EAP625GP-WALL

Garancia:

60 hónap

EAN:

8885020625080

Gyártó:

TP-LINK

EAN:

8885020625080

Frekvencia:

2.4 GHz és 5 GHz

Szabvány:

802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax

Repeater funkció:

Igen

Bridge funkció:

Igen

Kültéri kivitel:

Nem

LAN sebesség:

10/100/1000 Mbit/s

WiFi sebesség:

1800 Mbit/s

POE adapter:

Nem

WAN sebesség:

10/100/1000 Mbit/s
