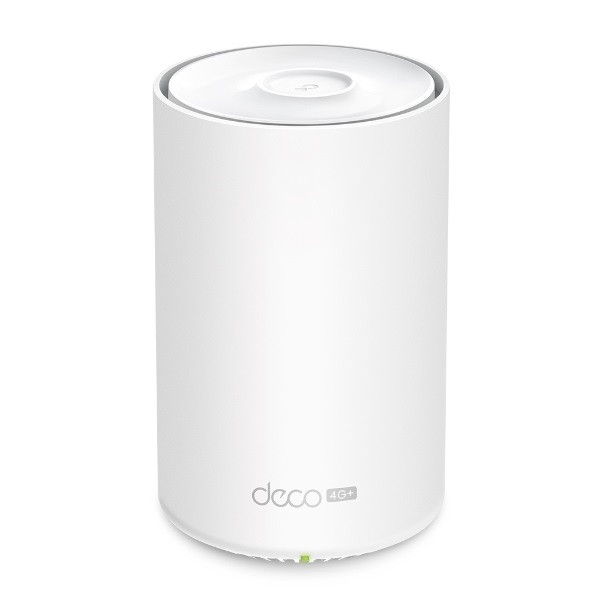

TP-LINK Wireless Mesh Networking system AX1800 DECO X20-4G(1-PACK)

• Részletek
• Adatok

Részletek

Standards	Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds	AX1800 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range	1-3 Bedroom Houses (1-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage 2 LTE antennas, 2 Wi-Fi antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity	High Dual-Band Distribute devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 6 clients 4 Streams More than enough bandwidth for connected devices
Working Modes	3G/4G, Router, Access Point

HARDWARE
Processor	1.5 GHz Quad-Core CPU

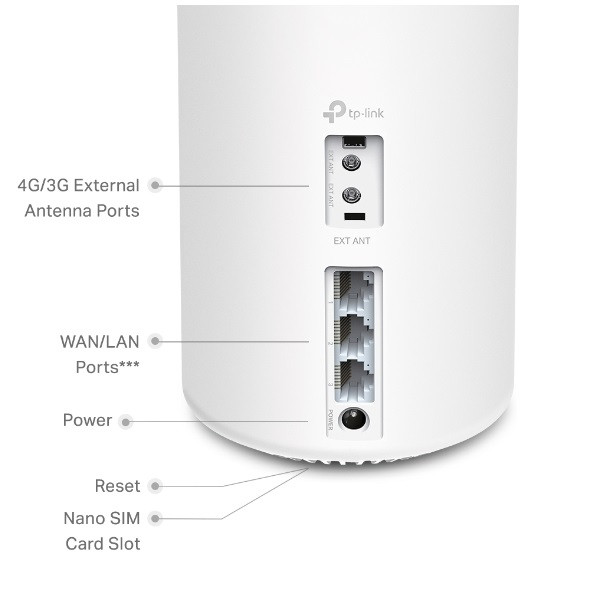

Ethernet Ports	3× Gigabit Ports Supports WAN/LAN auto-sensing
USB Support	12 V ? 1.5 A
Buttons	RESET Button
Ports and Connections	2 × 3G/4G External Antenna Ports Compatibility 4G: FDD-LTE:B1/B3/B5/B7/B8/B20/B28(2100/1800/850/2600/900/80 0/700 MHz) TDD-LTE: B38/B40/B41(2600/2300/2500 MHz) 3G: DC-HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900 MHz)

BIZTONSÁG
WiFi Encryption	WPA-Personal WPA2-Personal WPA3-Personal
Network Security	SPI Firewall Access Control HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner
Guest Network	1× 5 GHz Guest Network 1× 2.4 GHz Guest Network

SOFTWARE
Protocol	IPv4 IPv6
Service Kit	HomeShield Learn More>
WAN Types	Dynamic IP Static IP PPPoE L2TP PPTP
Quality of Service	HomeShield QoS QoS by Device
Cloud Service	OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Forwarding UPnP
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	TP-Link
Management	Deco App

EGYÉB JELLEMZŐK
Tanúsítványok	CE, RoHS
Csomagolás tartalma	1-pack 1 Deco X20-4G unit 1 RJ45 Ethernet Cable 1 Power Adapter 1 Quick Installation Guide 2 SMB to SMA Adapters 2-pack 1 Deco X20-4G unit + 1 Deco X20 unit 1 RJ45 Ethernet Cable 2 Power Adapters 1 Quick Installation Guide 2 SMB to SMA Adapters 3-pack 1 Deco X20-4G units + 2 Deco X20 units 1 RJ45 Ethernet Cable 3 Power Adapters 1 Quick Installation Guide 2 SMB to SMA Adapters
Doboz mérete (Sz X Mé X Ma)	4.13 × 4.13 × 6.57 in (105 × 105 × 167mm)
Környezet	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~60°C (-40°F~140°F) Operating Humidity: 10%~90%RH Storage Humidity: 5%~90%RH

TEST DATA
WiFi Transmission Power	CE: ≤20 dBm (2.4GHz) ≤23 dBm (5GHz)

Adatok

Gyártó:

TP-LINK

Gyártói cikkszám:

DECO X20-4G(1-PACK)

Garancia:

36 hónap

EAN:

6935364006709

Gyártó:

TP-LINK

EAN:

6935364006709

Sebesség:

5 GHz: 1201 Mbps (802.11ax), 2.4 GHz: 574 Mbps (802.11ax)

Frekvencia:

2.4 GHz és 5 GHz

Szabvány:

802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax

Titkosíthatóság:

WPA-Personal, WPA2-Personal, WPA3-Personal

Repeater funkció:

Igen

Kültéri kivitel:

Nem

Rejtett SSID:

igen
