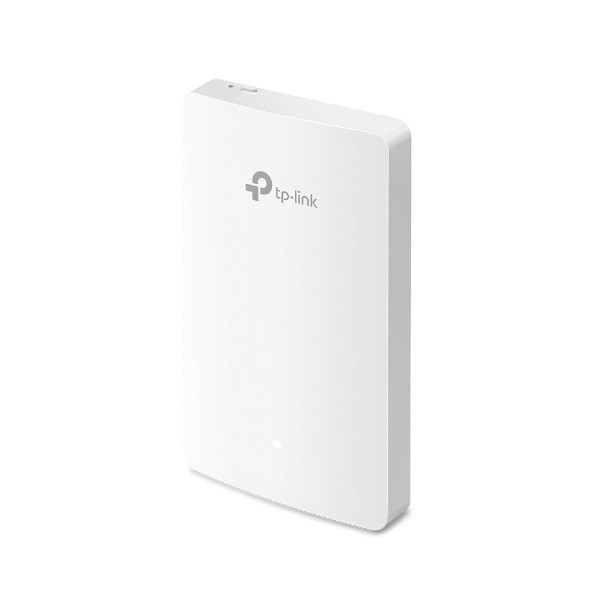

TP-LINK Wireless Access Point Dual Band AC1200 Falra rögzíthető, EAP235-WALL

• Részletek
• Adatok

Részletek

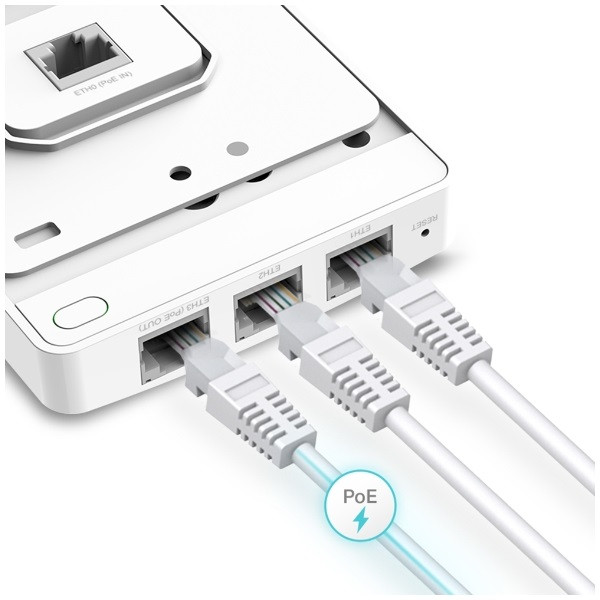

Interface	Uplink port: One 10/100/1000 Mbps Ethernet Port, accepts 802.3af or 802.3at PoE Access ports: Three 10/100/1000 Mbps Ethernet Ports with one PoE power pass-thru port
Physical Security Lock	Yes
Button	Reset
Power Supply	802.3af/802.3at PoE
Power Consumption	9.8 watts 24.4 watts with 13w PoE output

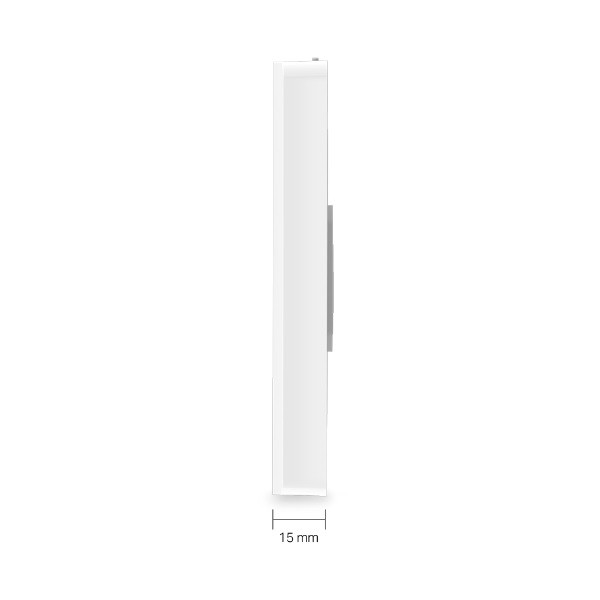

Dimensions	5.6 × 3.4 × 0.8 in. 143 × 86 × 20 mm
Antenna	2.4 GHz: 2× 4 dBi 5 GHz: 2× 4 dBi
Mounting	Wall Plate Mounting

WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/b/g/n/ac
Frequency	2.4 GHz and 5 GHz
Signal Rate	5 GHz: Up to 867 Mbps 2.4 GHz: Up to 300 Mbps
Wireless Functions	16 SSIDs (Up to 8 SSIDs on each band) Enable/ disable SSID broadcast Automatic channel assignment Transmit power control (adjustable in 1 dBm step) QoS (WMM) Band steering Beamforming Load balance Rate limit Scheduled reboot Wireless scheduled on/off Wireless Statistics based on SSID, access point, or client
Wireless Security	Captive portal authentication Access control list Wireless MAC address filtering Wireless isolation between clients SSID to VLAN Mapping LAN port-based VLAN Rogue AP detection 802.1X EAP support 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
Transmission Power	≤21 dBm (2.4 GHz) ≤21 dBm (5 GHz)

MANAGEMENT
Omada App	Yes
Centralized Management	Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller
Cloud Access	Yes
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c
System Logging Local/Remote Syslog	Local/ remote syslog
SSH	Yes
Web-based Management	HTTP/ HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes

OTHERS
Certification	FCC, RoHS
Package Contents	Omada AC1200 Wireless Gigabit Wall Plate Access Point EAP235-Wall Installation guide Mounting screw
Environment	Operating temperature: 0–40 ? (32–104 ?) Storage temperature: -40–70 ? (-40–158 ?) Operating humidity: 10–90% RH non-condensing Storage humidity: 5–90% RH non-condensing

Adatok

Gyártó:

TP-LINK

Gyártói cikkszám:

EAP235-WALL

Garancia:

60 hónap

EAN:

6935364088972

Gyártó:

TP-LINK

EAN:

6935364088972

Sebesség:

300 Mbps (2,4 GHz) + 867 Mbps (5 GHz)

Frekvencia:

2.4 GHz és 5 GHz

Szabvány:

802.11b, 802.11g, 802.11n, 802.11ac

Titkosíthatóság:

64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise

Bridge funkció:

Igen

Kültéri kivitel:

Nem
