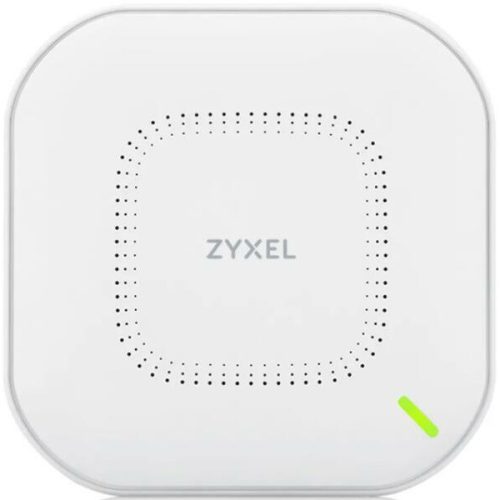

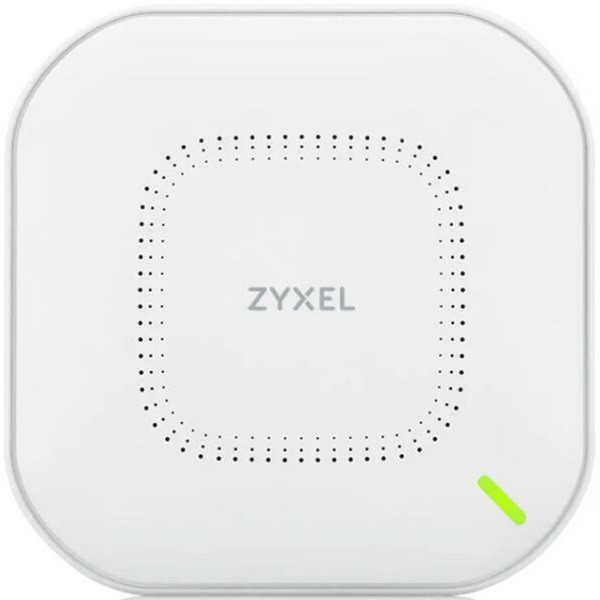

ZYXEL Wireless Access Point Dual Band AX3000 (WiFi 6) Falra rögzíthető 1x2.5G, NWA90AXPRO-EU0102F

• Részletek
• Adatok

Részletek

Description	802.11ax (WiFi 6) Dual-Radio PoE Access Point
Wireless
Standard	IEEE 802.11 ax/ac/n/g/b/a
MIMO	MU-MIMO
Wireless speed	2.4GHz: 575 Mbps 5GHz: 1200 Mbps
Frequency band	2.4 GHz USA (FCC): 2.412 to 2.462 GHz Europe (ETSI): 2.412 to 2.472 GHz 5 GHz USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth	20-, 40-, 80-MHz
Conducted typical transmit output power	US (2.4GHz/5GHz): 23/26 dBm EU (2.4GHz/5GHz): 20/25 dBm
RF Design
Antenna type	2x2 + 2x2 MIMO embedded antenna
Antenna gain	2.4GHz: 3 dBi 5GHz: 4 dBi
Minimum Receive sensitivity	Min. Rx sensitivity up to -99 dBm
WLAN feature
Band Steering	Yes
WDS/Mesh	Yes
Fast roaming	Yes
DCS	Yes
Load balancing	No
Security
Encryption	WPA Personal WPA2 Personal WPA3 Personal
Authentication	No
Access management	MAC filtering Rogue AP detection
Networking
IPv6	Yes
VLANs	Yes
WMM	Yes
U-APSD	Yes
Management
Operating mode	Nebula Cloud managed Standalone
ZON Utility	Discovery of Zyxel switches, APs and gateways Centralized and batch configurations IP configuration IP renew Device factory reset Device reboot Device locating Web GUI access Firmware upgrade Password configuration
Zyxel Wireless Optimizer	WiFi AP planning
Web UI/CLI	Yes
SNMP	NO
Physical Specifications
Item	Dimensions (WxDxH)(mm/in.) 140 x 140 x 37.5/5.51 x 5.51 x 1.48 Weight (g/lb.) 290/0.64
Packing	Dimensions (WxDxH)(mm/in.) 240 x 155 x 60/9.45 x 6.10 x 2.36 Weight (g/lb.) 600/1.32
Included accessories	Power adapter Mount plate Mounting screws
MTBF (hr)	1,010,980
Physical Interfaces
Ethernet port	1 x 10/100/1000M LAN
Power	Input: AC 100 - 240V - 50/60 Hz 0.3A; Output: DC +12V 1.5A PoE (802.3at): power draw 16 W
Environmental Specifications
Operating	Temperature 0°C to 50°C/32°F to 122°F Humidity 10% to 90% (non-condensing)
Storage	Temperature -40°C to 70°C/-40°F to 158°F Humidity 10% to 90% (non-condensing)
Certifications
Radio	FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893; LP0002 EN 60601-1-2
EMC	FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 BSMI CNS13438
Safety	EN 60950-1 IEC 60950-1 BSMI CNS14336-1

Adatok

Gyártó:

ZYXEL

Gyártói cikkszám:

NWA90AXPRO-EU0102F

Garancia:

60 hónap

EAN:

4718937630592

Gyártó:

ZYXEL

EAN:

4718937630592

Sebesség:

3000Mbps

Frekvencia:

2.4 GHz és 5 GHz

Repeater funkció:

Igen

Bridge funkció:

Igen

Kültéri kivitel:

Nem
