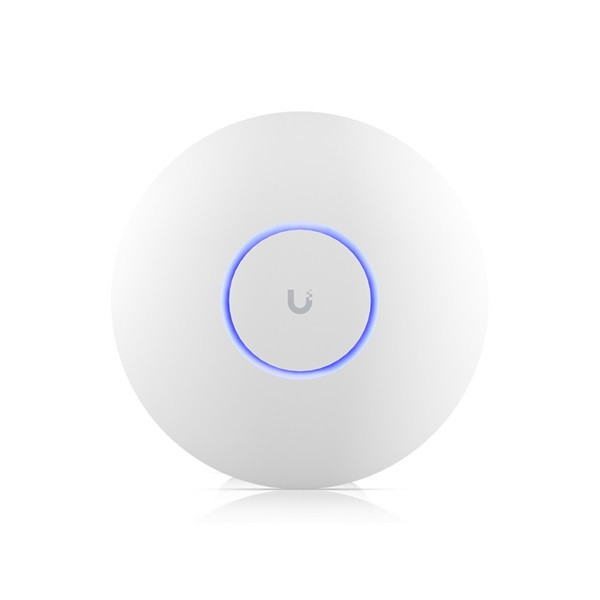

UBiQUiTi Wireless Access Point TriBand 1x2500Mbps, 9,3Gbps, 2x2 MIMO, POE nélkül, Falra rögzíthető - U7-PRO

• Részletek
• Adatok

Részletek

Mechanical
Dimensions	O206 x 46 mm (O8.1 x 1.8")
Weight	680 g (1.5 lb)
Enclosure material	Polycarbonate, metal
Mount material	Stainless steel (SUS304), galvanized steel (SGCC)
Hardware
Networking interface	(1) 1/2.5 GbE RJ45 port
Management interface	Ethernet
Power method	PoE+
Power supply	UniFi PoE switch
Supported voltage range	44—57V DC
Max. power consumption	21W
Max. TX power 2.4 GHz 5 GHz 6 GHz	22 dBm 26 dBm 23 dBm
MIMO 2.4 GHz 5 GHz 6 GHz	2 x 2 2 x 2 2 x 2
Throughput rate 2.4 GHz 5 GHz 6 GHz	688 Mbps 2882 Mbps 5765 Mbps
Antenna gain 2.4 GHz 5 GHz 6 GHz	4 dBi 6 dBi 5.8 dBi
LEDs	White/blue
Button	Factory reset
Mounting	Wall/ceiling (Included)
Operating temperature	-30 to 60° C (-22 to 140° F)
Operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Software
WiFi standards	802.11a/b/g/n/ac/ax/be
Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guest traffic isolation	Supported
Concurrent clients	300+
Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6)	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7)	7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
UniFi Network	Version 8.0.26 and later
UniFi OS	Version 3.2 and later

Adatok

Gyártó:

UBIQUITI

Gyártói cikkszám:

U7-PRO

Garancia:

24 hónap

EAN:

810084693650

Gyártó:

UBIQUITI

EAN:

810084693650

Frekvencia:

2.4 GHz és 5 GHz és 6 GHz

Repeater funkció:

Nem

LAN sebesség:

10/100/1000/2500 Mbit/s

WiFi sebesség:

9300 Mbit/s
