UBiQUiTi Wireless Access Point Point-to-MultiPoint, 5GHz 2x100Mbps, kültéri - NSM5

• Részletek
• Adatok

Részletek

NSM5
Dimensions	294 x 31 x 80 mm (11.57 x 1.22 x 3.15")
Weight	400 g (14.11 oz)
Power Supply (PoE)	24V, 0.5A
Max. Power Consumption	8W
Power Method	Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Frequency Worldwide USA USA DFS	5170-5875 MHz 5725-5850 MHz 5250-5850 Mhz
Gain	14.6-16.1 dBi
Networking Interface	(2) 10/100 Ethernet Ports
Processor Specs	Atheros MIPS 74Kc, 560 MHz
Memory	64 MB DDR2, 8 MB Flash
Frequency	5 GHz
Cross-pol Isolation	22 dB Minimum
Max. VSWR	1.6:1
Beamwidth	43° (H-pol) / 41° (V-pol) / 15° (Elevation)
Polarization	Dual Linear
Enclosure	Outdoor UV Stabilized Plastic

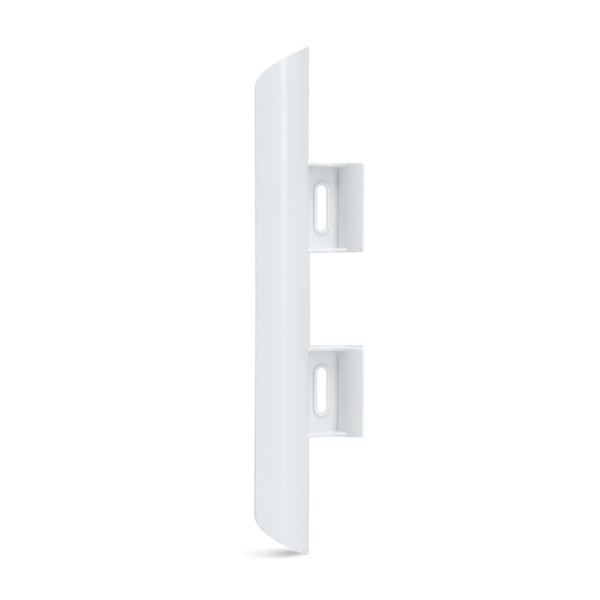

Mounting	Pole-Mount (Kit Included)
Operating Temperature	-30 to 75° C (-22 to 167° F)
Operating Humidity	5 to 95% Noncondensing
Wireless Approvals	FCC Part 15.247, IC RS210, CE
RoHS Compliance	Yes
Shock & Vibration	ETSI300-019-1.4

Adatok

Gyártó:

UBIQUITI

Gyártói cikkszám:

NSM5

Garancia:

12 hónap

EAN:

5996409365206

Gyártó:

UBIQUITI

EAN:

5996409365206

Sebesség:

150Mbit

Frekvencia:

2.4 GHz és 5 GHz

Szabvány:

802.11b, 802.11g, 802.11n

Repeater funkció:

Nem

Kültéri kivitel:

Igen
