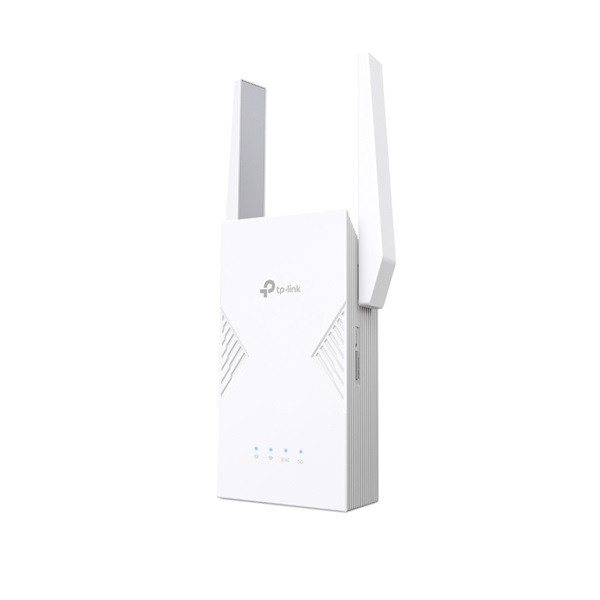

TP-LINK Wireless Range Extender Dual Band BE3600 Wifi 7, RE235BE

• Részletek
• Adatok

Részletek

ARDWARE FEATURES
Interface	1× 2.5 Gbps Ethernet Port
Button	• WPS Button • Reset Button
Input Power	100-240V~50/60Hz 0.3A
Max. Power Consumption	15W
Dimensions ( W x D x H )	3.8 × 1.8 × 6.2 in (97 × 46 × 158 mm)
Antenna	2 External Antennas

WIRELESS FEATURES
Wireless Standards	Wi-Fi 7 IEEE 802.11be/ax/ac/n/a 5 GHz IEEE 802.11be/ax/n/b/g 2.4 GHz
Frequency	• 5 GHz • 2.4 GHz
Signal Rate	• 2882 Mbps at 5 GHz • 688 Mbps at 2.4 GHz
Working Modes	Range Extender/Access Point
Reception Sensitivity	5GHz: 11be EHT20 MCS0:-96dBm 11be EHT40 MCS0:-94dBm 11be EHT80 MCS0:-91dBm 11be EHT160 MCS0:-88dBm 11be EHT20 MCS13:-59dBm 11be EHT40 MCS13:-57dBm 11be EHT80 MCS13:-54dBm 11be EHT160 MCS13:-51dBm 2.4GHz: 11be EHT20 MCS0:-95dBm 11be EHT40 MCS0:-93dBm 11be EHT20 MCS13:-58dBm 11be EHT40 MCS13:-56dBm
Wireless Security	• WPA/WPA2-PSK encryptions • WPA2/WPA3
Advanced Features	• Multi-Link Operation (MLO) • 160 MHz Channel • 4K-QAM • Multi-RUs
Transmission Power	FCC: • 2.4GHz < 30dBm • 5GHz < 30dBm
Mesh Technology	EasyMesh-Compatible
Wireless Function	• LED Control • Access Control • Power Schedule • Wi-Fi Coverage

OTHER
Network Services Enabled by Default	Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443   Protocol: TCP DHCP Server IP address assignment (DHCP) • Port: 67   Protocol: UDP App management Manage and configure device through app • Port: 20001   Protocol: TCP • Port: 20002   Protocol: UDP

OTHERS
Certification	FCC, RoHS

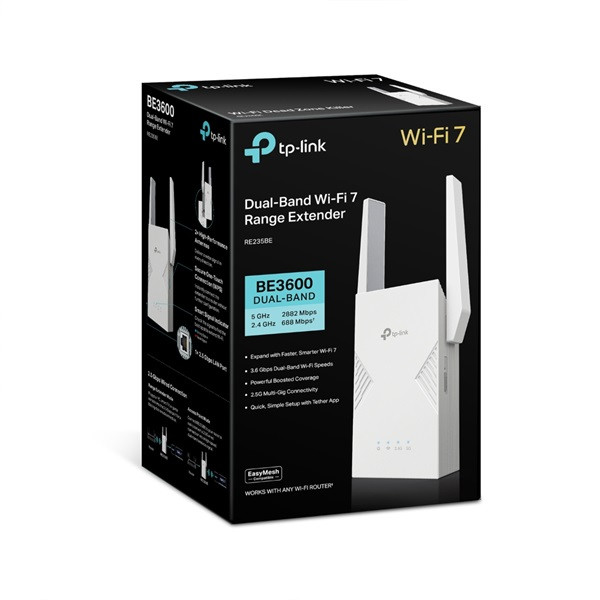

Package Content	• Wi-Fi 7 Range Extender RE235BE • Quick Installation Guide
System Requirements	Internet Explorer, Firefox, Chrome, Safari, or other JavaScript-enabled browser
Environment	• Operating Temperature: 0?~40? (32? ~104?) • Storage Temperature: -40?~70? (-40? ~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing

Adatok

Gyártó:

TP-LINK

Gyártói cikkszám:

RE235BE

Garancia:

36 hónap

EAN:

1210002601443

Gyártó:

TP-LINK

Frekvencia:

2.4 GHz és 5 GHz

Szabvány:

802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax, 802.11be

Kültéri kivitel:

Nem

WiFi sebesség:

3600 Mbit/s
