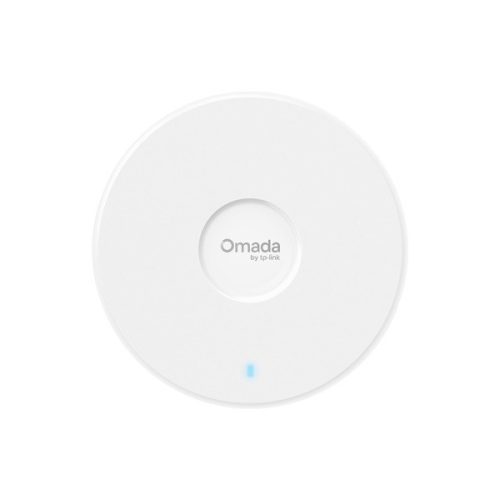

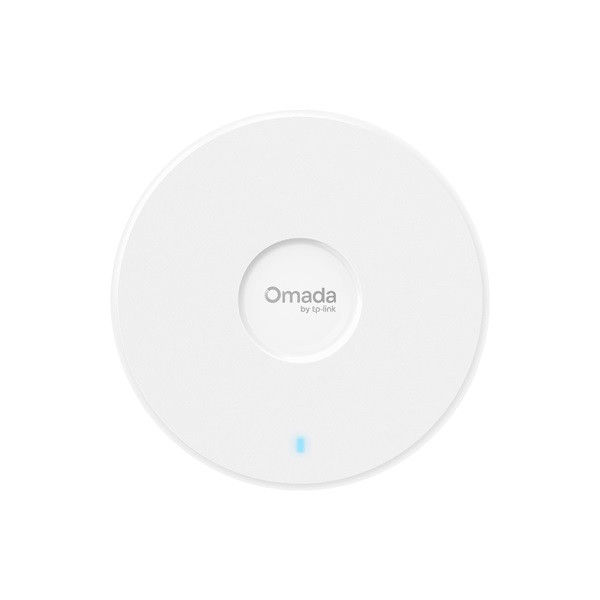

TP-LINK Wireless Access Point Dual-Band BE5000 Wifi 7 Mennyezetre rögzíthető, EAP720

• Részletek
• Adatok

Részletek

EQUIPMENT FEATURES
Interface	1×2.5G Ethernet Port

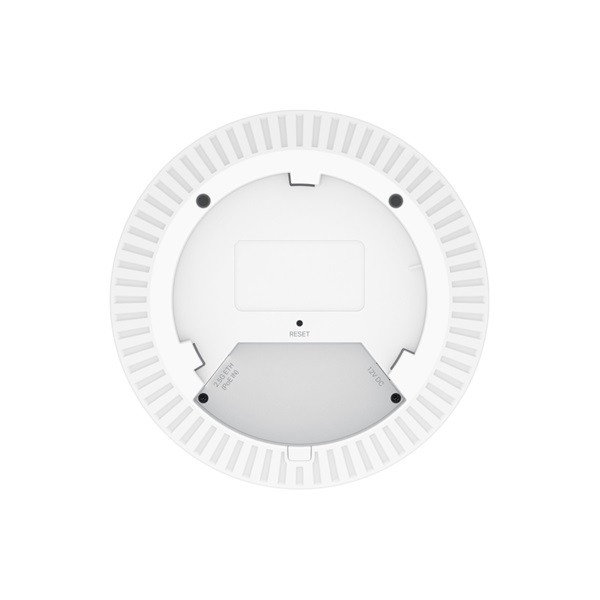

Button	Reset
Power supply	802.3at PoE or 12V/1.5A DC (Power Adapter Included)
Power consumption	• 17.83 W (For PoE); • 13.99 W (For DC)
Dimensions (W x D x H)	6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)
Antenna	• 2.4 GHz: 2× 4.0 dBi • 5 GHz: 2× 5.0 dBi

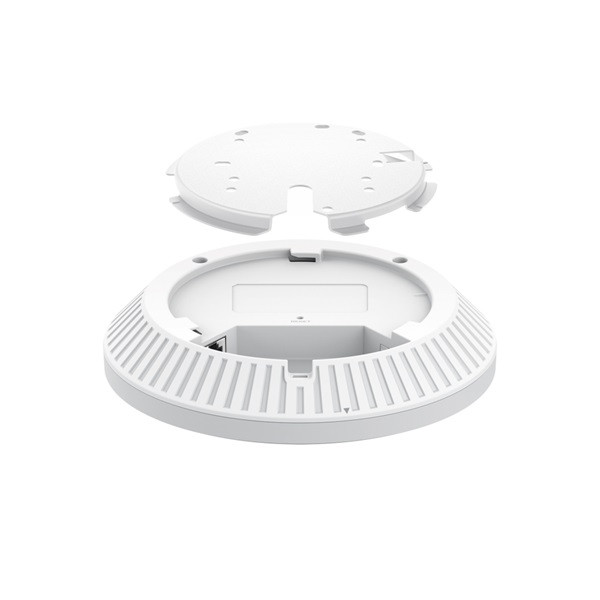

Installation	Ceiling/Wall/Junction Box Mounting (Kits Included)

WIRELESS NETWORK FEATURES
Maximum coverage area	1500 ft2 (140?) *
Number of clients	250+ **
Wireless Network Standards	IEEE 802.11 a/b/g/n/ac/ax/be
Frequency	2.4 GHz and 5 GHz
Signal speed	688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)
Wireless Network Features	• MLO ‡ • 4K-QAM ‡ • Seamless Roaming • 240 MHz Bandwidth ‡ • Mesh ? • OFDMA ‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:16(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication
Wireless Network Security	• Captive Portal Authentication ? • Access Control • Maximum number of MAC Filter: 4,000 • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission power	< 25 dBm (2.4 GHz) < 25 dBm (5 GHz, UNII-1&UNII-4) < 24 dBm (5 GHz, UNII-2&UNII-3)

CONTROL
Omada App	Yes
Centralized management	• Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller
Cloud access	Yes. Require the use of Omada Controller.
Email Notification	Yes
Power indicator control	Yes
MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local / Remote System Logging	Yes
Web control	Yes

OTHER
Certification	CE, FCC, RoHS, IC
Delivery set	• Omada Wi-Fi 7 Ceiling Mount Access Point EAP720 • Installation Guide • Ceiling/Wall/Juntion Box Mounting Kit • Power Adapter
Environmental parameters	• Operating Temperature: 0°C–40°C (32°F–104°F); • Storage Temperature: -40°C–70°C (-40°F–158°F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing;

Adatok

Gyártó:

TP-LINK

Gyártói cikkszám:

EAP720

Garancia:

60 hónap

Gyártó:

TP-LINK

EAN:

1210002608732

Frekvencia:

2.4 GHz és 5 GHz

Szabvány:

802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax, 802.11be

Repeater funkció:

Igen

Bridge funkció:

Igen

Kültéri kivitel:

Nem

LAN sebesség:

10/100/1000/2500 Mbit/s

WiFi sebesség:

5400 Mbit/s

POE adapter:

Nem

WAN sebesség:

10/100/1000/2500 Mbit/s
