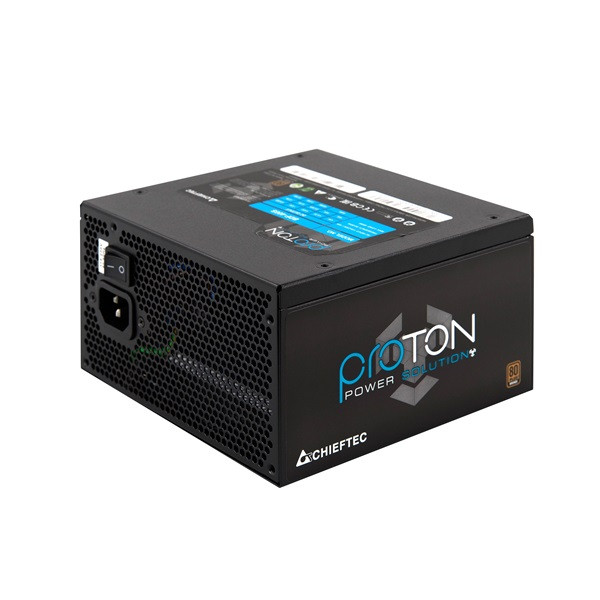

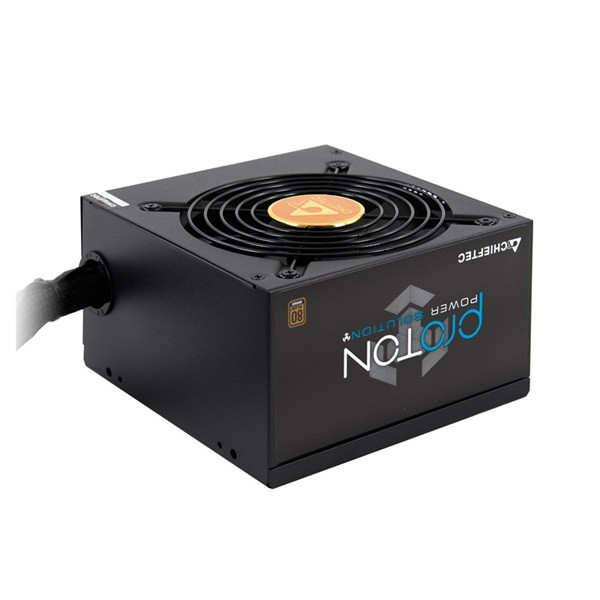

CHIEFTEC Tápegység PROTON 500W 80%+ Bronz BOX

• Részletek
• Adatok

Részletek

Model	PROTON 500W
Article no.	BDF-500S
EAN code	4710713231269
Weight (without/with package)	1.55kg / 1.90kg
AC Input	115-230V / 10A
Frequency	50 - 60Hz
+5V	18A
+3,3V	18A
+5V & +3,3V combined	90W
+12V1	41.68A
+12V2	-
+12V1, +12V2 combined	500W
P.F.	>0,9
-12V	0,3A / 3,6W
+5VSB	2,5A / 12,5W
Maximum Power	500W

Connectors

20+4 PIN ATX	1
8 PIN EPS (4+4)	1
8 PIN PCIe (6+2)	2
SATA	6
MOLEX	3

Cable length (mm)

20+4 PIN ATX	450
8 PIN EPS (4+4)	550
8 PIN PCIe (6+2)	450/150
SATA	2x 400/150/150
MOLEX	400/150/150

Features

ATX12V Version	ATX 12V 2.3
Efficiency	80+Bronze
Dimension (DxWxH)	140 mm x 150 mm x 86 mm
PFC	Active PFC
Fan	120mm silent fan
Security	AFC (Automatic Fan speed Control) OCP (Over Current Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection)
Warranty	24 Months

Adatok

Gyártó:

CHIEFTEC

Gyártói cikkszám:

BDF-500S

Garancia:

24 hónap

EAN:

4710713231269

Gyártó:

CHIEFTEC

EAN:

4710713231269

Hűtés típusa:

Low Noise (14cm)

Teljesítmény:

500
