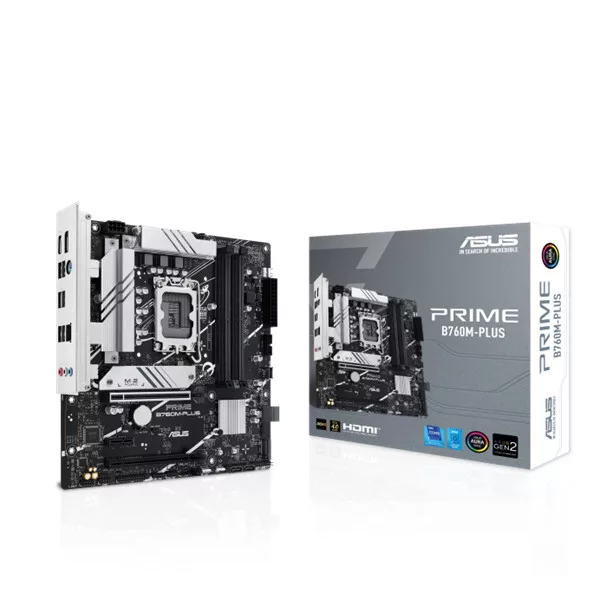

ASUS Alaplap S1700 PRIME B760M-PLUS INTEL B760, mATX

Name: ASUS Alaplap S1700 PRIME B760M-PLUS INTEL B760, mATX
Brand: ASUS
SKU: 349725
Price: 61900 HUF
Availability: InStock

71 900 Ft

61 900 Ft

ASUS Alaplap S1700 PRIME B760M-PLUS INTEL B760, mATX

Raktáron

71 900 Ft

61 900 Ft

Kezdete: 2026.04.23 A készlet erejéig

Megtakarítás 10 000 Ft

ASUS Alaplap S1700 PRIME B760M-PLUS INTEL B760, mATX

Részletek

Model

PRIME B760M-PLUS

CPU

Intel^® Socket LGA1700 for Intel^® Core™ 14th & 13th Gen Processors, Intel^®Core™ 12th Gen, Pentium^® Gold and Celeron^® Processors*
Supports Intel^® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Intel^® Socket LGA1700 for Intel^® Core™ 14th & 13th Gen Processors, Intel^®Core™ 12th Gen, Pentium^® Gold and Celeron^® Processors*
Supports Intel^® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel^® B760 Chipset

Memory

4 x DIMM slots, max. 192GB, DDR5
7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile II (AEMP II)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
4 x DIMM slots, max. 192GB, DDR5
7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile II (AEMP II)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**
1 x HDMI^™port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
1 x DisplayPort**
1 x HDMI^™port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel^® Core^TM Processors (14th & 13th & 12th Gen)*
1 x PCIe 4.0 x16 slot
Intel^® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel^® Core^TM Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel^®B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel^® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

1 x Realtek 2.5Gb Ethernet
ASUS LANGuard

USB

Rear USB (Total 6 ports)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 8 ports)
1 x USB 5Gbps connector (supports USB Type-C^®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 5 additional USB 2.0 ports
* USB Type-C^® power delivery output: max. 5V/3A
Rear USB (Total 6 ports)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 8 ports)
1 x USB 5Gbps connector ((supports USB Type-C^®)
1 x USB 5Gbps headers support 2 additional USB 5Gbps ports
3 x USB 2.0 header support 5 additional USB 2.0 ports
* USB Type-C^® power delivery output: max. 5V/3A

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 5 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front panel audio header (F_AUDIO)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 header support 5 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front panel audio header (F_AUDIO)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function

Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers

Software Features

ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancelation
AI Suite 3
- Digi+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
AASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancelation
AI Suite 3
- Digi+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide

Operating System

Windows^® 11, Windows^® 10 64-bit

Form Factor

micro-ATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Adatok

Gyártó:

ASUS

Gyártói cikkszám:

PRIME B760M-PLUS

Garancia:

36 hónap

EAN:

4711387469910

Gyártó:

ASUS

Chipset gyártó:

Intel

Chip:

B760

Memória típus:

DDR5

D-Sub:

Nem

EAN:

4711387469910

Wireless:

Nem

HDMI:

Igen

Display Port:

Igen

Thunderbolt:

Nem

DVI:

Nem

Kivitel:

Dobozos

Memória órajel:

5600

USB 2.0:

USB 3.0:

USB 3.1:

SATA III:

Párhuzamos port:

Nem

Soros port:

Nem

Quad Channel:

Nem

M.2 foglalat:

Igen

Foglalat típusa:

S1700

Audio:

7.1 HD

Grafikus foglalat:

PCI-Ex16

Form Factor:

mATX

LAN1:

100/1000/2500 Mb/s

Max memória:

192

Memória foglalatok száma:

Raid:

Igen

PS/2 Port:

PCI foglalatok száma:

PCI-E foglalatok száma:

VGA integrált:

Nem

Garancia (hónap):

Termék gyártója:

ASUS
