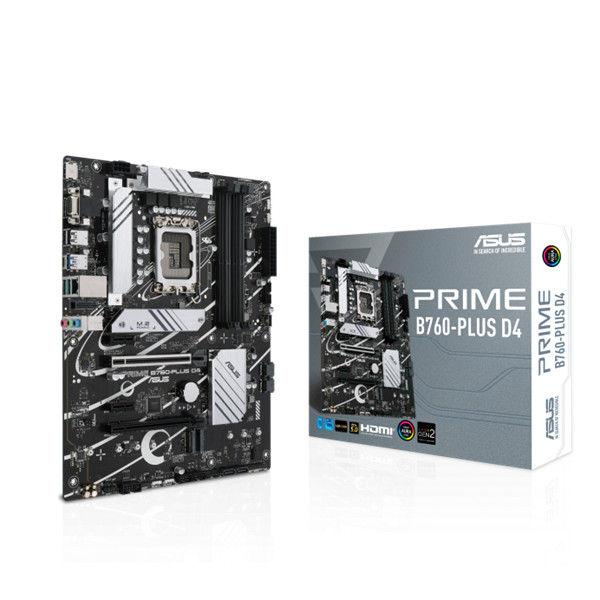

ASUS Alaplap S1700 PRIME B760-PLUS D4 INTEL B760, ATX

69 900 Ft

61 900 Ft

ASUS Alaplap S1700 PRIME B760-PLUS D4 INTEL B760, ATX

Name: ASUS Alaplap S1700 PRIME B760-PLUS D4 INTEL B760, ATX
Brand: ASUS
SKU: 330802
Price: 61900 HUF
Availability: InStock

Raktáron

69 900 Ft

61 900 Ft

Kezdete: 2024.09.09 A készlet erejéig!

Megtakarítás 8 000 Ft

ASUS Alaplap S1700 PRIME B760-PLUS D4 INTEL B760, ATX

Részletek

Model

PRIME B760-PLUS D4

CPU

Intel^® Socket LGA1700 for 13^th Gen Intel^® Core™ & 12^th Gen Intel^® Core™, Pentium^® Gold and Celeron^®
Processors*
Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel^® B760 Chipset

Memory

4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel^® Extreme Memory Profile (XMP)
OptiMem
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

Graphics

1 x DisplayPort**
1 x VGA port
1 x HDMI^® port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI^® 2.1.

Expansion Slots

Intel^® 13^th & 12^th Gen Processors*
1 x PCIe 5.0 x16 slot
Intel^® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel^® 13^th & 12^th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel^® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
* Intel^® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

Vertical M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately.

USB

Rear USB (Total 6 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C^®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI^® port
1 x Vertical M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C^® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4^®) header

Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

Software Features

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
AI Suite 3
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
2 x Screw Packages for M.2 SSD
Documentation
1 x User guide

Operating System

Windows^® 11, Windows^® 10 64-bit

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Adatok

Gyártó:

ASUS

Gyártói cikkszám:

PRIME B760-PLUS D4

Garancia:

36 hónap

EAN:

4711081970309

Gyártó:

ASUS

Chipset gyártó:

Intel

Memória típus:

DDR4

D-Sub:

Igen

EAN:

4711081970309

Wireless:

Nem

HDMI:

Igen

Display Port:

Igen

Thunderbolt:

Nem

DVI:

Nem

Kivitel:

Dobozos

Memória órajel:

3200

USB 2.0:

USB 3.0:

USB 3.1:

SATA III:

Párhuzamos port:

Nem

Soros port:

Nem

Quad Channel:

Nem

M.2 foglalat:

Igen

Foglalat típusa:

S1700

Audio:

7.1 HD

Grafikus foglalat:

2 x PCI-Ex16x

Form Factor:

ATX

LAN1:

100/1000/2500 Mb/s

Max memória:

128

Memória foglalatok száma:

Raid:

Igen

PS/2 Port:

PCI foglalatok száma:

PCI-E foglalatok száma:

VGA integrált:

Nem
