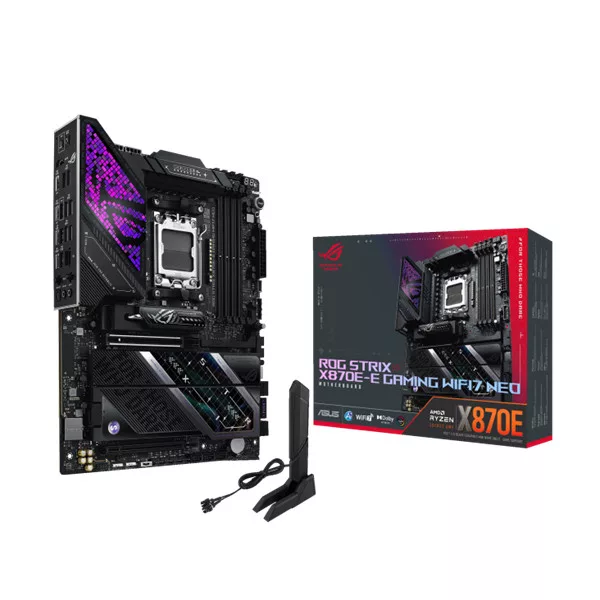

ASUS Alaplap AM5 ROG STRIX X870E-E GAMING NEO AMD X870, ATX

Cikkszám:
397920
ASUS Alaplap AM5 ROG STRIX X870E-E GAMING NEO AMD X870, ATX
ASUS Alaplap AM5 ROG STRIX X870E-E GAMING NEO AMD X870, ATX
222 900 Ft
ASUS Alaplap AM5 ROG STRIX X870E-E GAMING NEO AMD X870, ATX
ASUS Alaplap AM5 ROG STRIX X870E-E GAMING NEO AMD X870, ATX
ASUS Alaplap AM5 ROG STRIX X870E-E GAMING NEO AMD X870, ATX
ASUS Alaplap AM5 ROG STRIX X870E-E GAMING NEO AMD X870, ATX
Raktáron
222 900 Ft
ASUS Alaplap AM5 ROG STRIX X870E-E GAMING NEO AMD X870, ATX
  • Részletek
  • Adatok
Részletek

News & Updates

Socket AM5

Please visit our GLOBAL website to check and download the latest updates.

CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset

AMD X870E

Memory

4 x DIMM slots, max. 256GB, DDR5
Supports up to
8600+MT/s(OC)**/8200+MT/s(OC)*** with Ryzen™ 9000 Series Processors,
9600+MT/s(OC)**/9000+MT/s(OC)*** with Ryzen™ 8000 Series Processors,
8000+MT/s(OC)**/8000+MT/s(OC)*** with Ryzen™ 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
Supports DIMM Fit and DIMM Fit Pro
NitroPath DRAM Technology
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
** Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth. Results may vary according to system components.
*** EXPO/AEMP Profiles: Rated memory module speeds require setting the BIOS performance profile. Results may vary according to system components and can be impacted when four DIMM slots are used. For XMP/EXPO/AEMP profile settings, please visit https://rog.asus.com/support/faq/1042256/.
**** Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
Adjustments will be made based on the specifications of mass-produced memory products available on the market.

Graphics

1 x HDMI™ port**
2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
* Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
**** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O
panel or to a discrete graphics card.

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*
1 x PCIe 4.0 x16 slots (supports x8 mode)
AMD Ryzen™ 8500 & 8300 Series Desktop Processors*
1 x PCIe 4.0 x16 slots (supports x4 mode)
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
* Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage

Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**
AMD Ryzen™ 8500 & 8300 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Specifications vary by CPU types.
** USB 40Gbps Type-C ports on the back panel and M.2_2 slot share the bandwidth. Both run at x2 when a device is installed in the M2_2 slot. You can switch M2_2 to x4 in the BIOS, but this
will disable the USB 40Gbps Type-C ports.
*** M.2_3 shares bandwidth with PCIEX16(G4). When a M.2 drive is installed on M.2_3, PCIEX16(G4) will be disabled.

RAID Support

AMD RAIDXpert2 Technology
Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10

Ethernet

1 x Realtek® 5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7 (MediaTek MT7927)
2x2 Wi-Fi 7* (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth
Bluetooth® (suppports LE Audio)***
*Wi-Fi features may vary depending on the operating system.
For Windows 11, Wi-Fi 7 will require  24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi
6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 13 ports)
2 x USB4® (40Gbps) ports(2 x USB Type-C®)
1 x USB 10Gbps port (1 x USB Type-C® with up to 30W PD/PPS Fast-charge)**
10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®)
Front USB (Total 12 ports)
2 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
* USB Type-C® power delivery output: 5V/3A
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Supports LHDC, high-definition bluetooth audio codec, transmission with up to 400 kbps bitrate and 24-bit/192 kHz
sampling rate.**
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
** To enable LHDC please use a earbuds or Headset that supports LHDC codec, Please refer to the LHDC website for models that support LHDC https://lhdc.co/en/products/2.

Back Panel I/O Ports

2 x USB4® (40Gbps) (2 x USB Type-C® with DP Alt mode)
11 x USB 10Gbps port(s) (9 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD/PPS Fast-charge)
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek® 5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
5 x 4-pin Chassis Fan header(s)
1 x AIO Q-Connector
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 header(s)
1 x Alteration PCIe mode switch
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header

Special Features

Asynchronous Clock
Extreme Engine Digi+

- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release
- Q-Antenna
- Q-Code
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- Dual DIMM clips
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
-Addressable RGB Gen 2 header(s)

Software Features

ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
- Polymo Lighting
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- WiFi Q-Antenna
- MLO Wizard
ASUS DriverHub
- ASUS MB Manager
- ASUS AI Advisor
- AIDA64 Extreme (60 days free trial)
- HWiNFO
- ASUS GlideX
- USB Wattage Watcher
- TurboV Core
- Norton 360 for Gamers (60 Days Free Trial)
- WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)**
UEFI BIOS
Integrated WiFi Driver Support
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
* For more software features, please visit the asus support site or refer to www.asus.com/support for additional information.
** For detailed information on the supported models and restricted regions for this redemption offer, please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/.

BIOS

64MB (512Mb) Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x DDR5 fan holder
1 x Screw package for cooling kit
1 x ROG assistant fan (60mm)
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package(s)
1 x M.2 Q-Slide package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
5 x M.2 rubber package(s)
Documentation
1 x Quick start guide

Operating System

Windows 11

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Adatok
Gyártó:
ASUS
Gyártói cikkszám:
ROG STRIX X870E-E GAMING NEO
Garancia:
36 hónap
EAN:
4711636407946
Gyártó:
ASUS
Chipset gyártó:
AMD
Memória típus:
DDR5
D-Sub:
Nem
EAN:
4711636407946
Wireless:
Igen
HDMI:
Igen
Display Port:
Nem
Thunderbolt:
Nem
DVI:
Nem
Kivitel:
Dobozos
Memória órajel:
5200
USB 2.0:
6
USB 3.0:
0
USB 3.1:
15
SATA II:
0
SATA III:
4
Párhuzamos port:
Nem
Soros port:
Nem
Quad Channel:
Nem
M.2 foglalat:
Igen
Foglalat típusa:
AM5
Audio:
7.1 HD
Grafikus foglalat:
2 x PCI-Ex16x
Form Factor:
ATX
LAN1:
100/1000/5000 Mb/s
Max memória:
256
Memória foglalatok száma:
4
Raid:
Igen
PS/2 Port:
0
PCI foglalatok száma:
0
PCI-E foglalatok száma:
1
VGA integrált:
Nem
Garancia (hónap):
36
Termék gyártója:
ASUS
Vásárlói fiók
  • Belépés
  • Regisztráció
  • Profilom
  • Kosár
  • Kedvenceim
Információk
  • Általános szerződési feltételek
  • Adatkezelési tájékoztató
  • Fizetés
  • Szállítás
  • Elérhetőségek
  • ISO tanúsítványok
Sysinfo Kft.
  • 1131 Budapest, XIII, Béke u 135.
  • +36 20/914-5527
  • gamerpont@sysinfo.hu
    • info@sysinfo.hu
  • F

  • I
Iratkozzon fel hírlevelünkre!
GamerPont
Feliratkozás
simplepay_hu_v2
  • Periféria
  • Akciós gamer PC
  • Konfigurálható Gamer PC
  • Gamer számítógép
  • Számítógép
  • Notebook
  • Notebook kiegészítők
  • PC alkatrészek
  • Szoftver
  • Monitor
  • Billentyűzet
  • Egér
  • Gamer szék
  • Fejhallgató
  • Hangszóró
  • Hálózati eszközök
  • Telefon
  • Telefon kiegészítők
  • Drón
  • Játék konzol
  • Játék konzol kiegészítők
  • Egyedi gamer PC konfiguráció igény
  • Mennyiségi ajánlat
  • PC bővítés
  • Blog
  • GYIK
  • Gamer PC tudnivalók
  • Gépösszerakó
Belépés
Regisztráció
Adatkezelési beállítások
Weboldalunk az alapvető működéshez szükséges cookie-kat használ. Szélesebb körű funkcionalitáshoz (marketing, statisztika, személyre szabás) egyéb cookie-kat engedélyezhet. Részletesebb információkat az Adatkezelési tájékoztatóban talál.
A működéshez szükséges cookie-k döntő fontosságúak a weboldal alapvető funkciói szempontjából, és a weboldal ezek nélkül nem fog megfelelően működni. Ezek a sütik nem tárolnak személyazonosításra alkalmas adatokat.
A marketing cookie-kat a látogatók weboldal-tevékenységének nyomon követésére használjuk. A cél az, hogy releváns hirdetéseket tegyünk közzé az egyéni felhasználók számára (pl. Google Ads, Facebook Ads), valamint aktivitásra buzdítsuk őket, ez pedig még értékesebbé teszi weboldalunkat.
Az adatok névtelen formában való gyűjtésén és jelentésén keresztül a statisztikai cookie-k segítenek a weboldal tulajdonosának abban, hogy megértse, hogyan lépnek interakcióba a látogatók a weboldallal.
A személyre szabáshoz használt cookie-k segítségével olyan információkat tudunk megjegyezni, amelyek megváltoztatják a weboldal magatartását, illetve kinézetét.
